Acid resistant asbestos rubber sheet is a top anti-corrosion material. It resists acids, alkalis, corrosion, and high temperatures. The manufacturer makes it of rubber and asbestos fibers. It uses processes like mixing and pressing. You can use this type of sheet for a long time at high temperatures. It has a high-temperature resistance of over 150℃. It also has good flexibility and anti-aging properties. Acid-resistant asbestos rubber sheet has good acid resistance. It can resist erosion from various acidic environments. These include concentrated sulfuric and hydrochloric acids. Excellent alkali resistance:
You can use it in alkaline solutions for a long time without damaging it. Strong corrosion resistance:
It can resist erosion from various chemicals and high-temperature corrosion. Good high-temperature resistance:
It has great heat resistance. So, users can use it at high temperatures for a long time. It has strong anti-aging performance.
It has good resistance to oxygen and weathering, and is not prone to aging, hardening, or cracking.
Good flexibility:
It is easy to bend and cut, and it can adapt to various complex shapes and application scenarios. Applications of acid-resistant asbestos rubber sheet: chemical industry:
It is a popular choice for sealing and protecting against corrosion in acid and alkali tanks, chemical storage tanks, reaction vessels, pipelines, and other equipment.
Food processing industry:
Used as linings and anti-corrosion materials for acid and alkali containers, storage tanks, and conveying systems in the food processing industry.
Power industry:
For acid and alkali prevention and anti-corrosion in battery rooms and power equipment. Marine engineering:
Applied in seawater cooling systems, seawater desalination equipment, etc., with good anticorrosion performance.
Petroleum and chemical industries:
It protects equipment from corrosion in oil refineries and petrochemical plants. It greatly extends its service life.
Pharmaceutical industry:
Used in labs, drug factories, and other places to provide acid- and alkali-resistant protection. Mining industry:
Used to protect equipment from corrosion. This includes oil drilling, mine shafts, and coal mine ventilation furnaces.
Common sizes:
1500 x 1500 x (0.5-5mm), 1500 x 1350 x (0.5-5mm), 1500 x 1000 x (0.5-5mm), 1500 x 4500 x (0.5-5mm), 1500 x 4000 x (0.5-5mm), 1300 x 3810 x (0.5-5mm)
| Item | NY510 | NY400 | NY300 | NY250 | NY150 | HNY300 |
| Horizontal Strain MPa≥ | 18 | 15 | 12.7 | 11 | 9 | 12.7 |
| Compressibility % | 7~17 |
| Rebound degree | 50 | 45 | 35 | 50 |
| Worm change Relaxation rate % ≤ | 45 | _ | 45 |
| Density g/cm³ | 1.9 ~ 2.0 |
| Nitrogen leakage rate [(ml/h.mm)] ≤ | 300 |
| Normal temperature Pliability | Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack |
Dipped in IRM903 oil
with 149℃ for 5 hours | Horizontal Strain MPa≥ | 15 | 12 | 9 | 7 | 5 | 9 |
| Weight increasing % ≤ | 30 |
| Appearance change | _ | No bubble |
| Dipped in ASTM fuel oil B with 21℃-30℃ for 5 hours | Thickness increasing% | 0 ~ 20 | _ | 0 ~ 20 |
| Pliability | Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness, No crack |
| Cauterization to the metal material | _ | No Cauterization |
Normal temperature
oil Airtightness | Medium pressure MPa | 18 | 16 | 15 | 10 | 8 | 15 |
| Airtightness request | Keep for 30min, no leak |
| $1.8 / kg | $1.5 / kg | $1.3 / kg |
| 50-499 kg | 500-999 kg | ≥1000 kg |
| Our product prices may vary by a small amount due to raw materials and the market. For the latest price, please click the link below or contact our sales staff. |
Get the latest preferential policies
Lead time: 15~20 Workdays
Payment: 30% deposite
Selling Units: Kilogram
Delivery: By sea or by air
Package Type: Packing Details:In poly bags, cartons,wooden crates or pallets standard exported package.

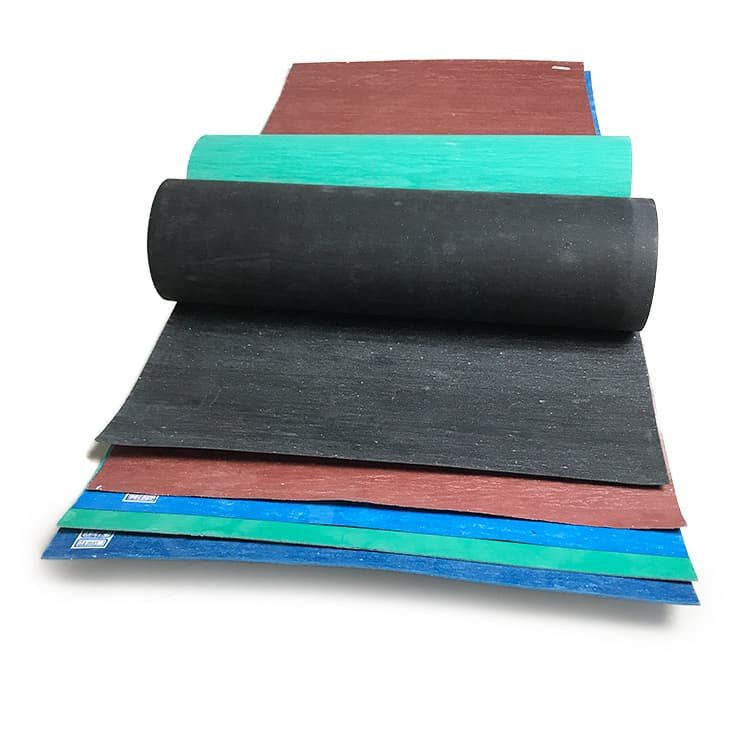

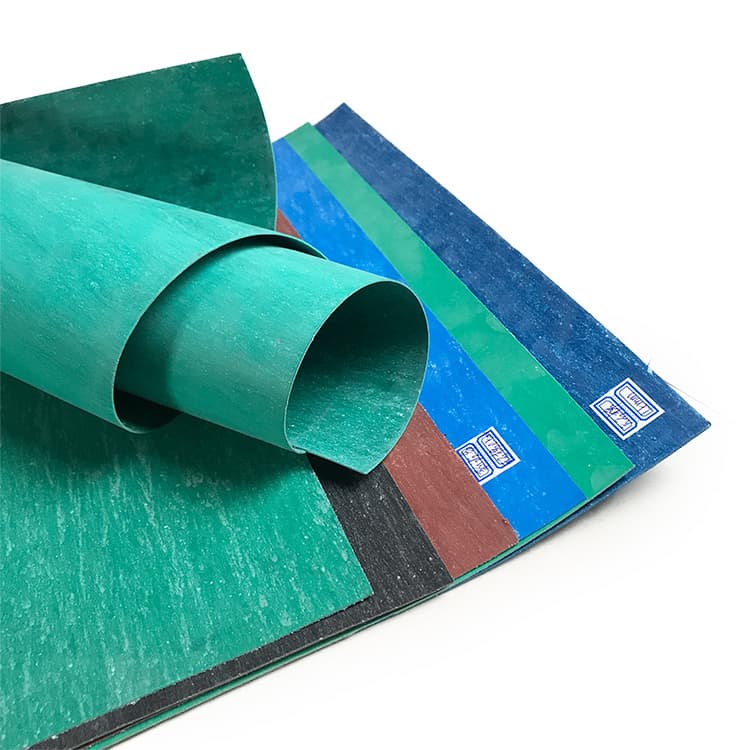

Picture Example:
